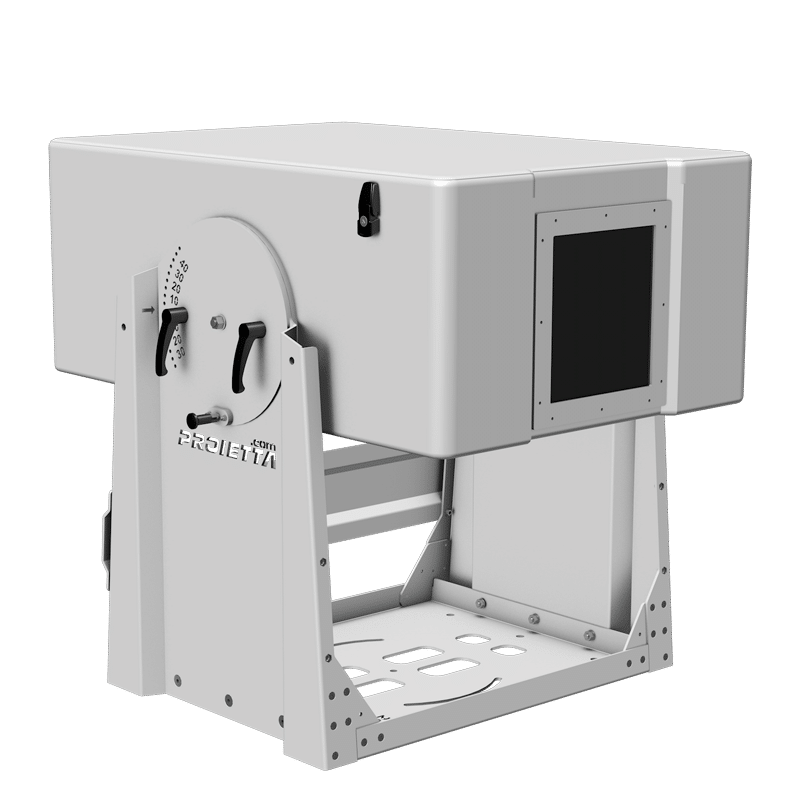

Our outdoor projector enclosure F20, thanks to its heating and cooling system, allows the installation of any video projector in any weather condition. The fiberglass case, unlike metal, prevents condensation inside the box. With our waterproof, protective housing you will be able to have perfect year-round outdoor projections and video mappings without having to worry about heat, cold, dust, rain or snow. Furthermore, an internal filter purifies the entering air permitting the best possible working conditions.
If connected H24 to the electrical current, the F20 protection performs an automatic temperature check and activates the heating system in case of cold weather and the cooling system in case of hot climate conditions.
The F20 has also been designed to be installed to the ceiling or, in general, to any suitable support structure. If the standard enclosure doesnât suit your video projector, we can customize it!
Â
increased ventilation compared to previous version

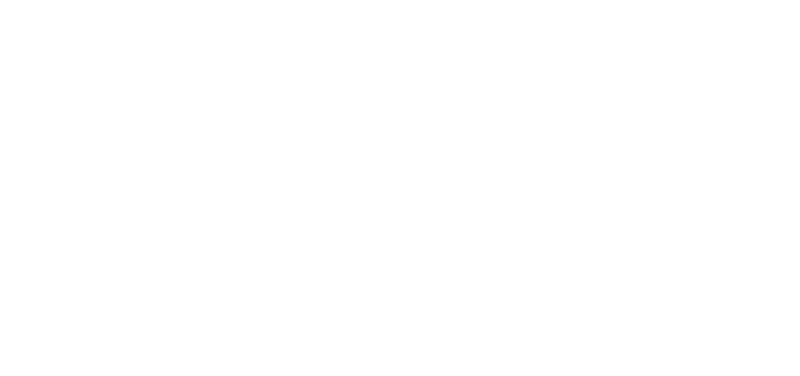

| F20 MODEL: AVAILABLE VOLUME FOR THE PROJECTOR | METRIC UNITS | ENGLISH UNITS |
|
width |
550 mm |
21.7" |
|
height |
350 mm |
13.8" |
|
depth |
670 mm |
26.4" |
SPECIFICATIONS:
WEIGHT: 65,0 kg (143.3 lbs)
MAX CONSUMPTION COOLING MODE: 210 W / 0,9A
MAX CONSUMPTION DURING HEATING AND DEHUMIDIFICATION MODE: 420 W / 1,84 A

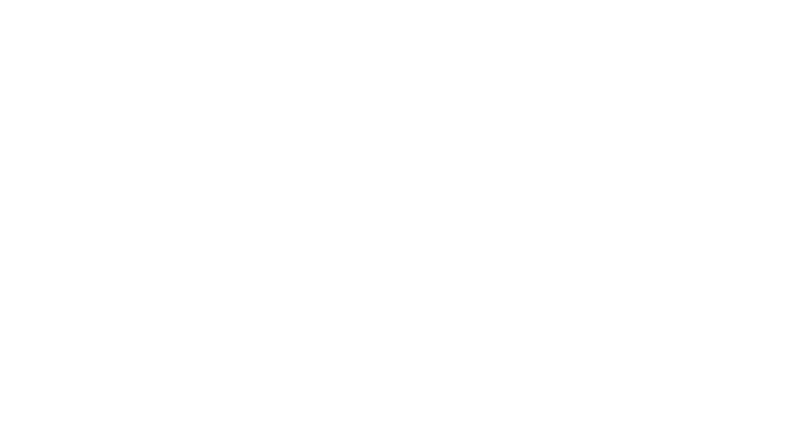

SPECIFICATIONS:
WEIGHT: 90,0 kg (198.4 lbs)
MAX CONSUMPTION COOLING MODE: 210 W / 0,9 A
MAX CONSUMPTION DURING HEATING AND DEHUMIDIFICATION MODE: 420 W / 1,84 A
OTHER OUTDOOR PROJECTOR ENCLOSURE
Ideal for a projector up to 20K
.
The smallest and most compact shell for housing two projectors vertically or horizontally
.
For housing two projectors vertically or horizontally up to 20K each
.
For two projectors up to 70K power, vertically or horizontally equipped with standard frames.
.
